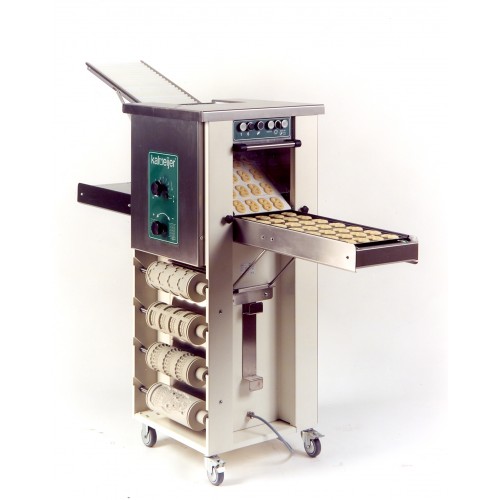

Kalmeijer Biscuit Cutter Machine
Kalmeijer -KGM Biscuit Machine
•Heating system for figure roller, so no flour dusting, therefore a better end result
•Changing of the figure roller within one minute, without any tools
•Folding baking tray tables, takes up less space
•Removable dough feeding roller, so easy to clean
•Adjustable thickness of the dough figures (for the right weight)
•Automatic “ Stop and Go” system, (biscuit machine stops if the dough input is insufficient, or if there are no more baking trays left in the machine
•A compact machine on wheels
AUTOMATIC HEATING SYSTEM BEFORE AND DURING PRODUCTION
Before the input of the dough slices and baking trays will take place, the machine can be switched on and during a maximum of 30 seconds, the machine is running to pre-heat the figure roller automatically. Now the machine is ready to start, the dough slices and baking trays can be placed into the machine. Only when the machine is working, the heating unit will be automatically switched on. The heating system has two positions namely: 1000 and 2000 Watt. This will guarantee that the dough (without flour dusting) will not stick to the figure roller and perfectly formed dough figures will be obtained.
AUTOMATIC "STOP AND GO"
In order to monitor the dough input and the transport of baking trays constantly, switches have been built in the machine. These switches stop the machine if the dough input is insufficient, or if there are no more baking trays left in the machine.
As soon as the input of the dough and baking trays starts once more, the machine will start running again. The dough figures are cut and automatically fed onto the baking trays by means of a conveyor belt.
As the speed of the baking trays can be regulated, the distance.
Kalmeijer cutting system
The figure roller forms the dough figures on the feeding roller. An adjustable knife, that moves very quickly, cuts them off from the dough sheet. This Kalmeijer cutting system can process all kinds of soft sweet pastry dough. It is possible to cut the dough figures at the desired thickness.
Feed hopper for dough input
The machine is equipped with a long feed hopper for the input of dough slices.
This feed hopper can be put into two sloping positions
• a more sloping position for thick dough slices
• a less sloping position for thin dough slices
The extension of the feed hopper has been fixed to the machine, but in such a way that it can be folded down. The support of the extension of the feed hopper, when folded out can be put in a holder, where it is automatically "locked".
